The external corners measure 20 x 20 cm and the joints measure 6 x 6 cm.

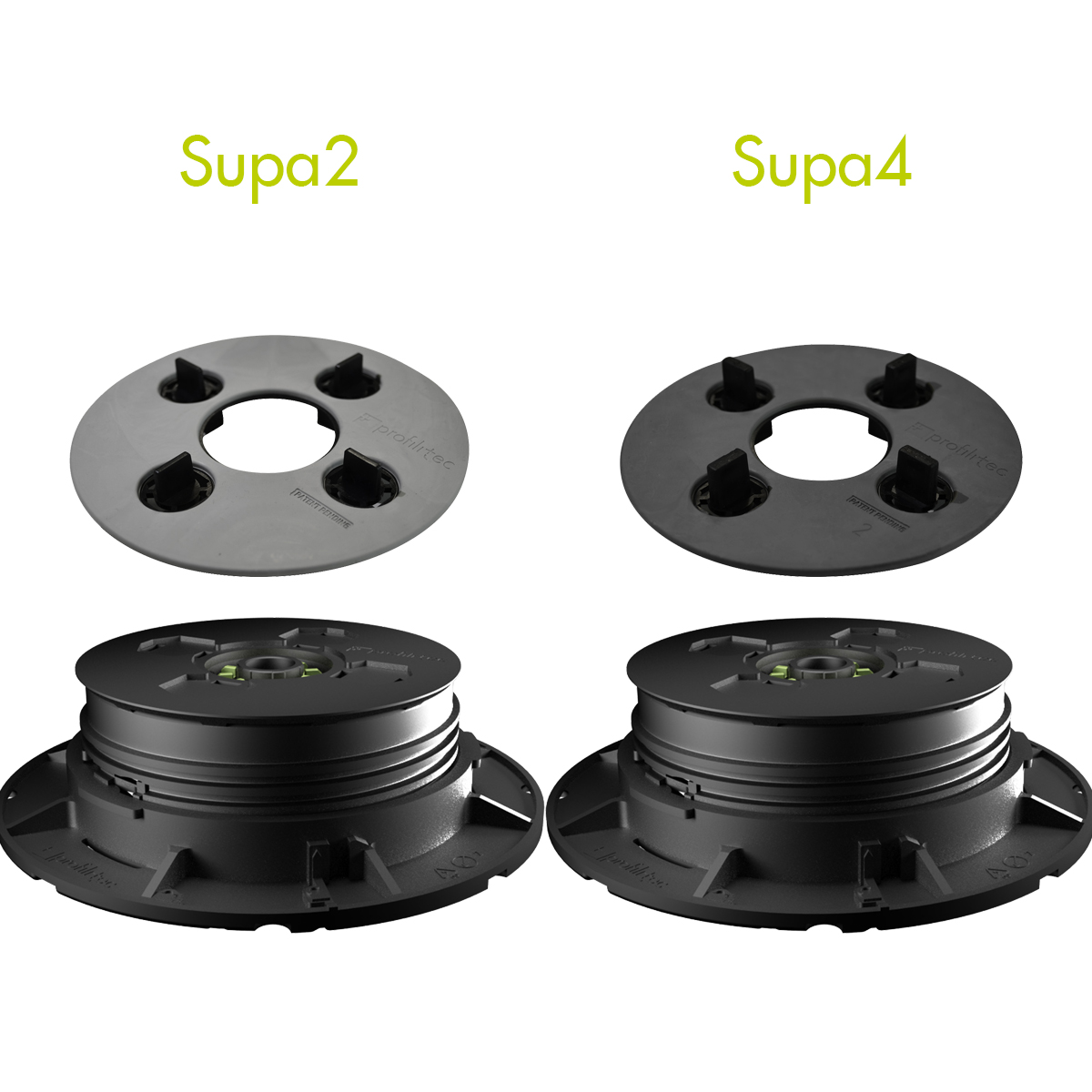

Choosing between a head with a 2mm (SUPA2) or a 4mm (SUPA4) gap is mainly aesthetically driven (taking into consideration that in outdoor installations a wider joint between the tiles is not as evident as in indoor installations). The advantage of using a head with a 4mm gap is being able to do the final height adjustments using the SUPAK tool, even after the floor is installed, without having to remove any pieces. In addition, the 4mm head can also be used with installations containing aluminum joists.

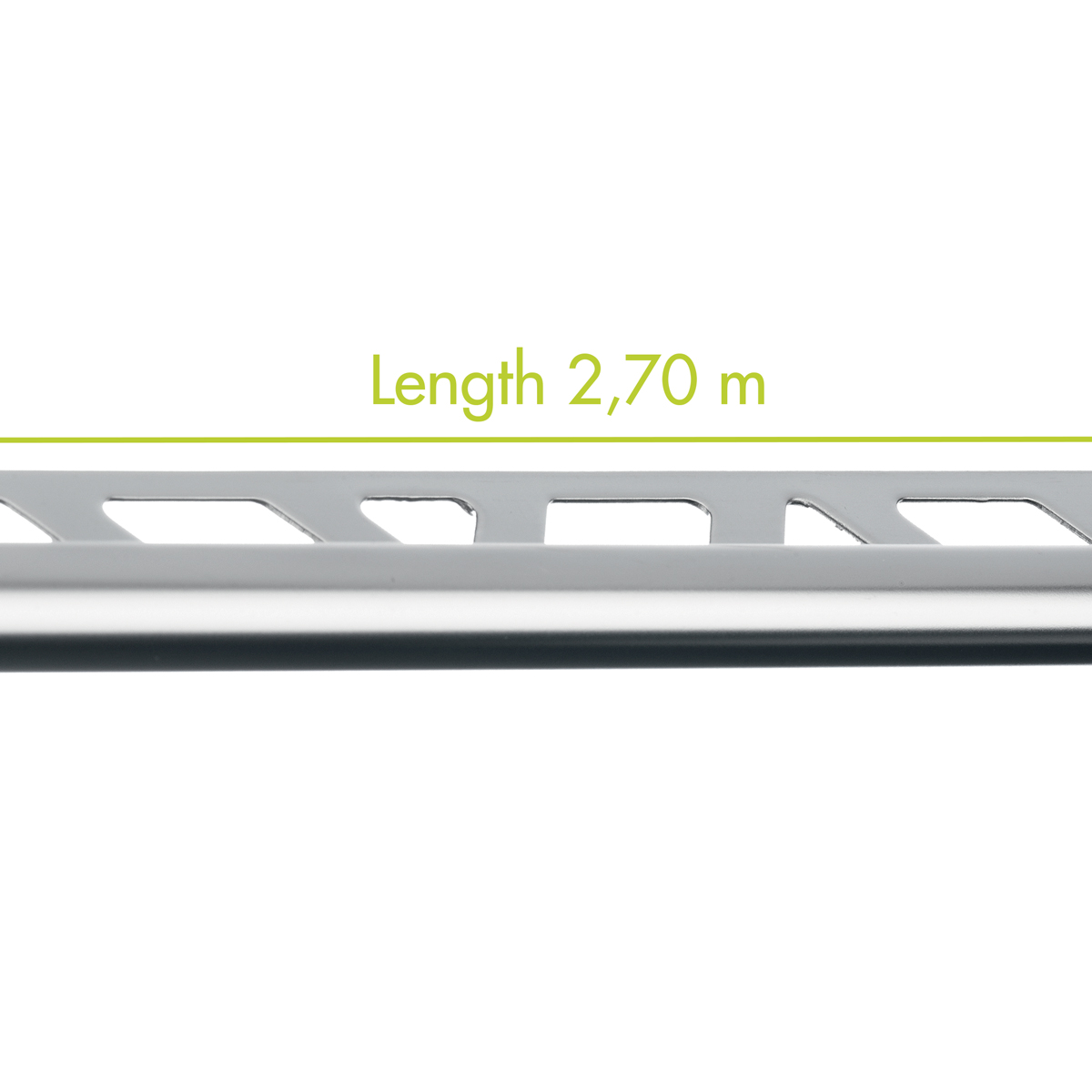

Almost all our profiles are 2.7m in length. This length offers several advantages, for example when our profiles are used on sites with spaces higher than 2.5m, you can use a single profile without having to add vertical pieces.

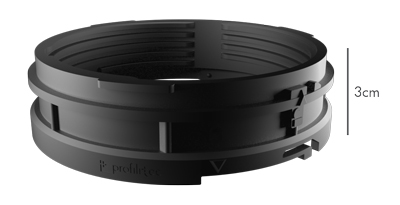

The stackable rings for Uptec pedestals for raised floors are 3cm high each.

The tiles will, in any case, sit higher than the stainless steel profile (its height is fixed), but you can compensate the level difference by beveling the edge of the tile to match the level of the Multidrain channel.
